NorthGlass's deep-processed glass limit size

Flat, spot-free tempered glass

"Pure flat without spots" is the perfect realm pursued by flat tempered glass. NorthGlass's "flat and spotless" tempering technology can make float glass basically maintain the original flatness and crystal clear nature after tempering. It basically eliminates the wind spots and white fog deformation that are difficult to eliminate by ordinary tempered glass, which is a revolution in glass tempering technology.

Maximum size: 3600mm× 18000mm, 3300mm×24000mm

Minimum size: 200mm×300mm

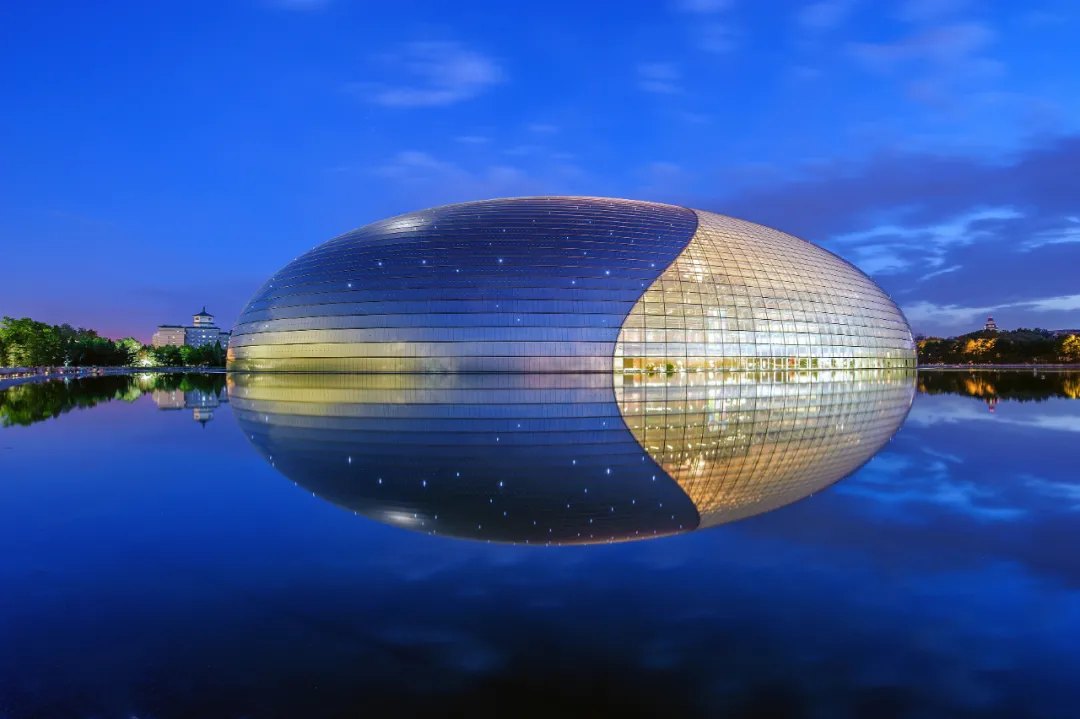

National Center for the Performance Arts

Bent steel glass

With years of experience in the R&D and production of bent steel glass, NorthGlass is currently able to produce tempered glass with high optical quality, and has complete production technology, control means and testing equipment. The precise arc and sleek curve meet the design requirements of the designer for the shape of the building logistics line to the greatest extent, and are widely used in sightseeing elevators, balconies, shower rooms, high-end furniture, etc.

Maximum size: (arc length) 3600mm× 18000mm, (arc length) 8000mm× 4000mm

(Arc length) 2440mm×5000mm (forward and reverse bending)

(Arc length) 3600mm×3200mm (front and reverse bend)

(Arc length) 2500mm× 4000mm (reverse bending)

Minimum size: (arc length) 600mm×400mm

Minimum radius of curvature: 600mm

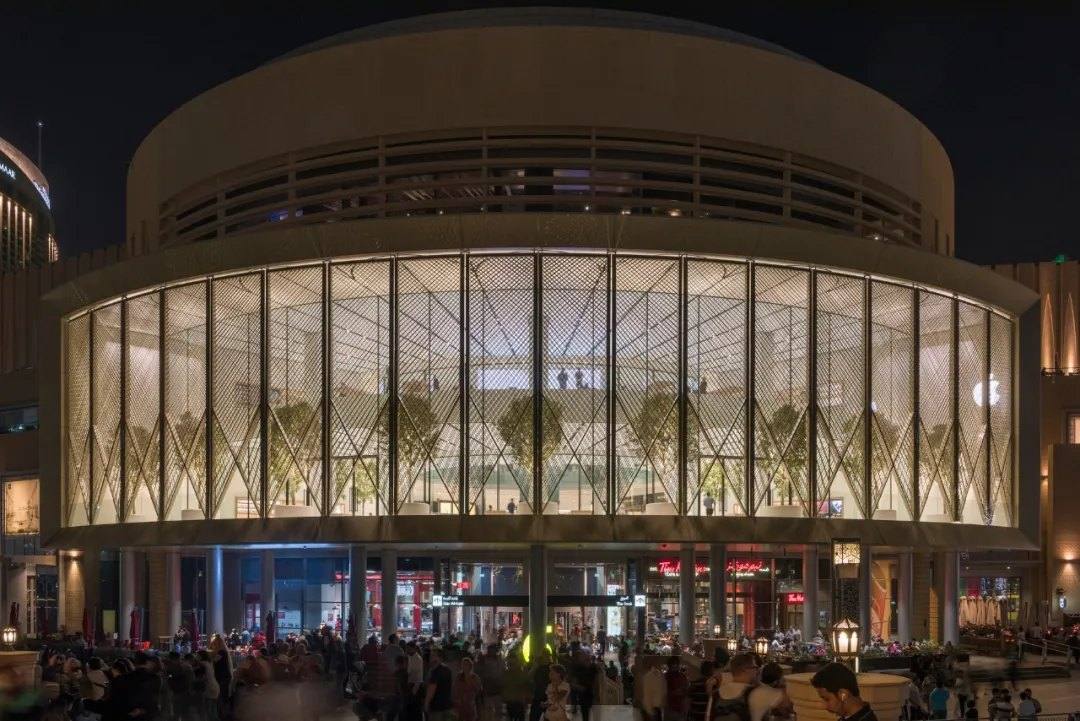

World's Famous Electronics Consumer Brand Dubai Store

Insulating glass

NorthGlass has a number of imported automatic insulating glass production lines, which ensures the quality of insulating glass products from the process. At the same time, NorthGlass has long been committed to improving the quality of super-large insulating glass, and has a unique process and technology in the lamination of super-large insulating glass.

Maximum size: 3600mm× 18000mm, 3300mm×24000mm

Minimum size: 200mm×300mm

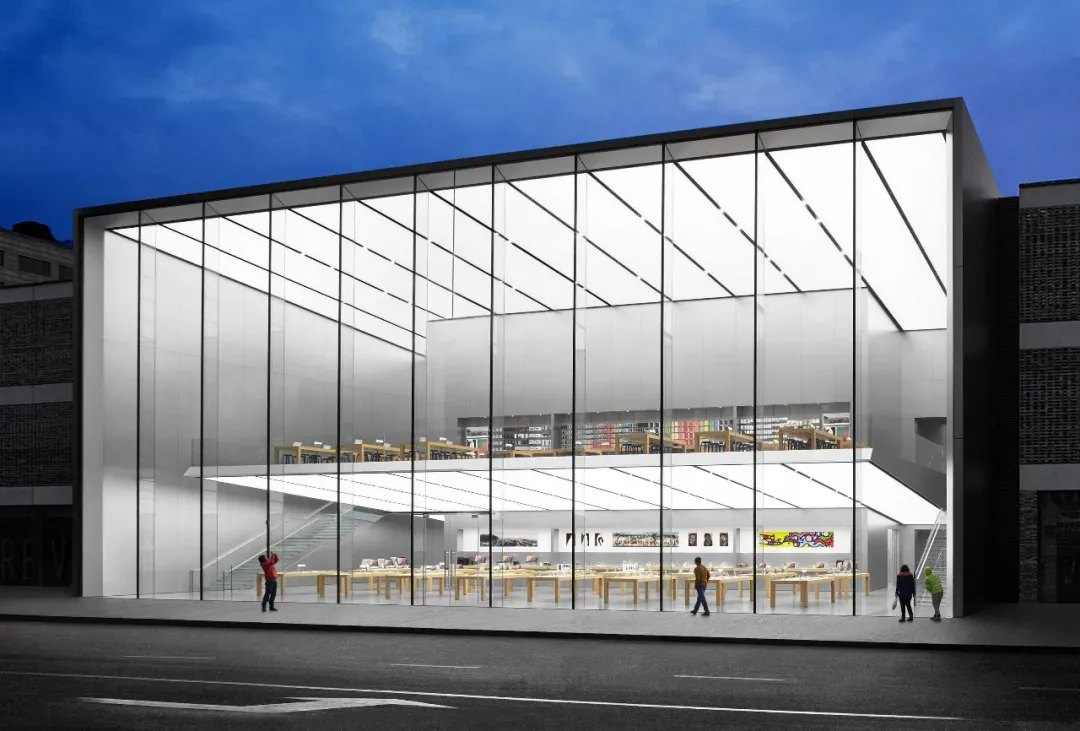

World's Famous Electronics Consumer Brand Hangzhou Store

Laminated glass

NorthGlass' laminated glass has exquisite craftsmanship, and the unique process can make the stainless steel mesh and copper mesh sandwiched between the glass, and can also be bonded with stone and metal, and the inlay process of metal parts in the glass can provide designers with infinite imagination.

Maximum size: 3600mm× 18000mm, 3300mm×24000mm

Minimum size: 200mm×300mm

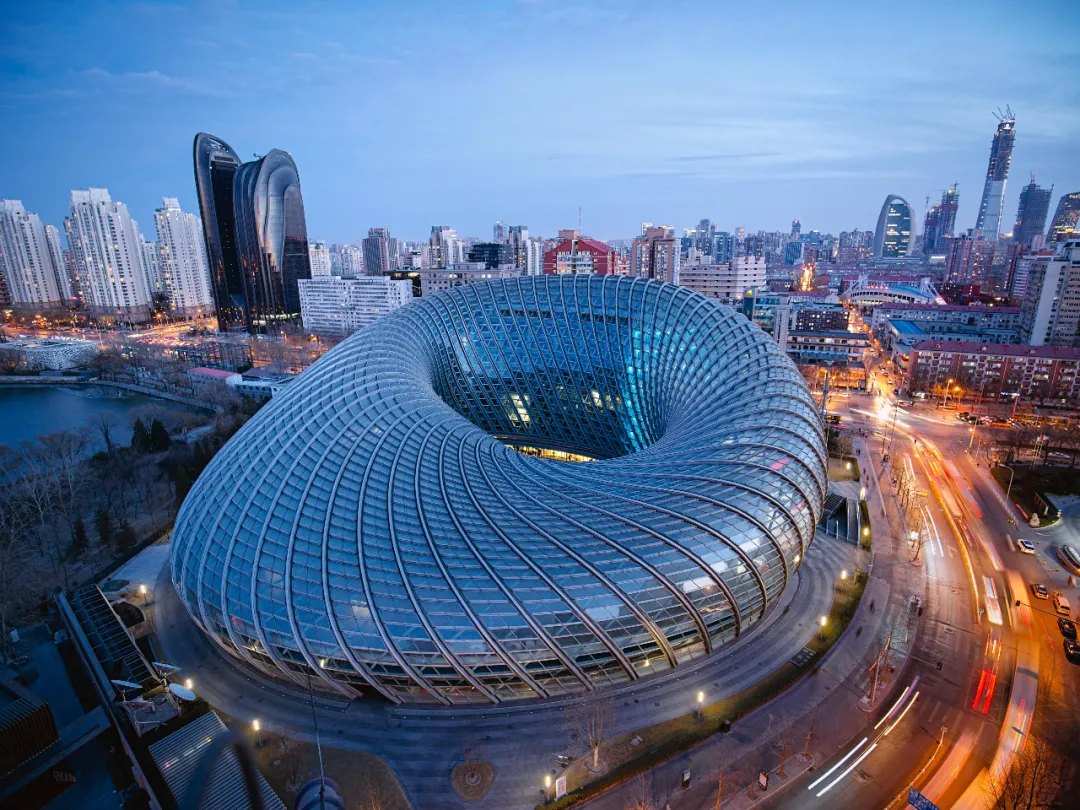

Phoenix TV Media Center, Phoenix Media Building, Beijing

Silkscreen printed glazed glass

Screen printing glazed glass is to print the inorganic color glaze on the glass surface through the screen printing machine, and then dry and sinter at high temperature to make the color glaze adhere to the glass surface. NorthGlass screen printing color glaze glass glaze has strong adhesion, high color fidelity, or complex or simple design patterns, after processing, the visual rich, the level is distinct, and has a unique texture.

Maximum size: 3300mm×6000mm

Minimum size: 200mm×300mm

Shanghai Tower, the podium   of Shanghai Tower

Digital color printing glass

NorthGlass has introduced advanced digital printing equipment to print or print inorganic high-temperature ink on glass through digital printing process, and then high-temperature sintering to permanently fix the ink on the glass surface. It has strong resistance to acid and alkali and corrosion. Technological innovation has created new imagination spaces.

Maximum size: 3300mm×18000mm

Minimum size: 200mm×300mm

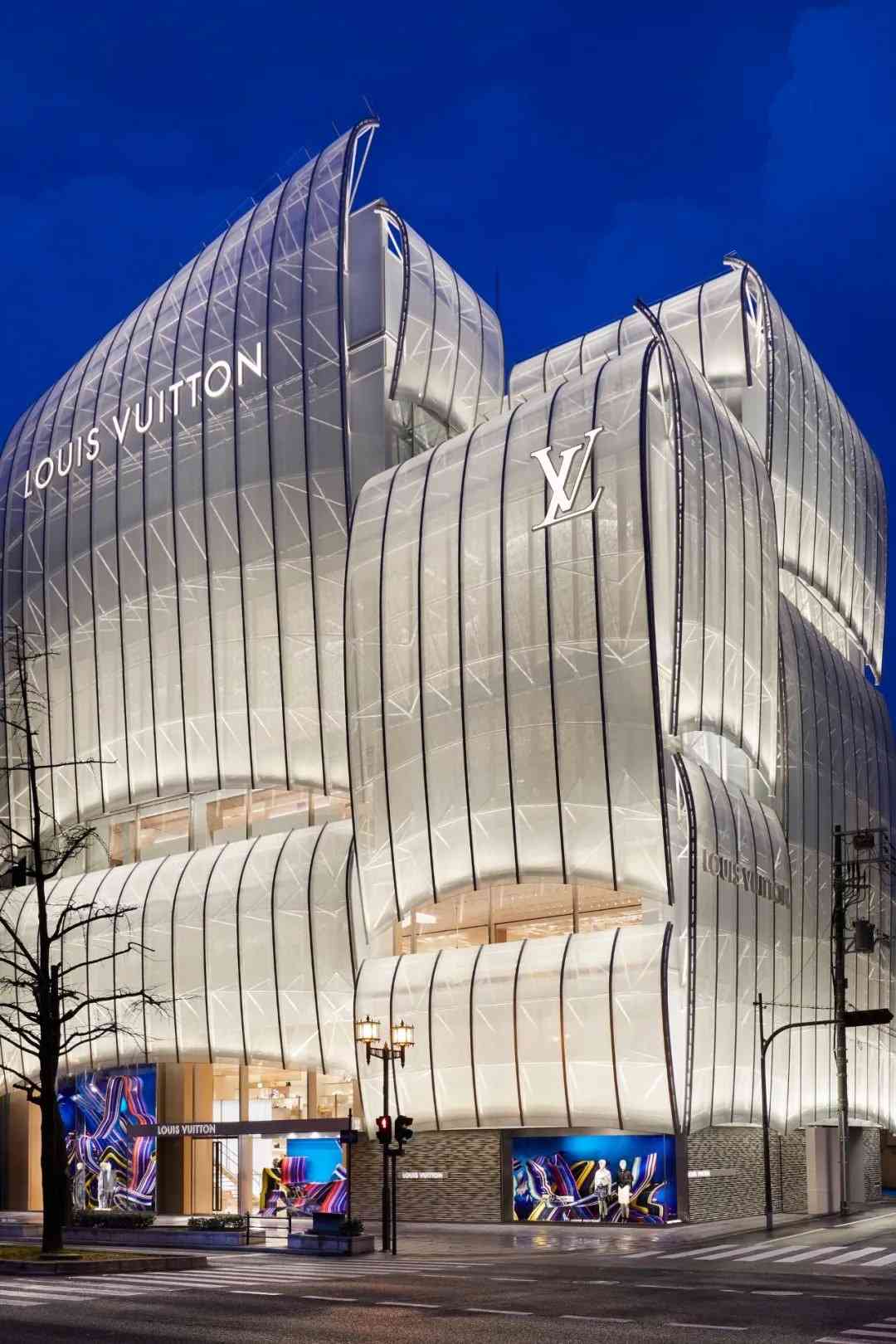

Louis Vuitton Maison Osaka Midosuji, Japan

Structural glazing

NorthGlass Structural Glass is composed of two or more layers of tempered glass bonded with SGP structural film, so that the glass has extremely high compressive, bending and impact strength, and NorthGlass structural glass has higher transparency than similar products, and is widely used in glass panels, glass ribs, glass stair treads, floors, display cabinets, etc.

Maximum size: 3300mm×18000mm

Minimum size: 200mm×300mm

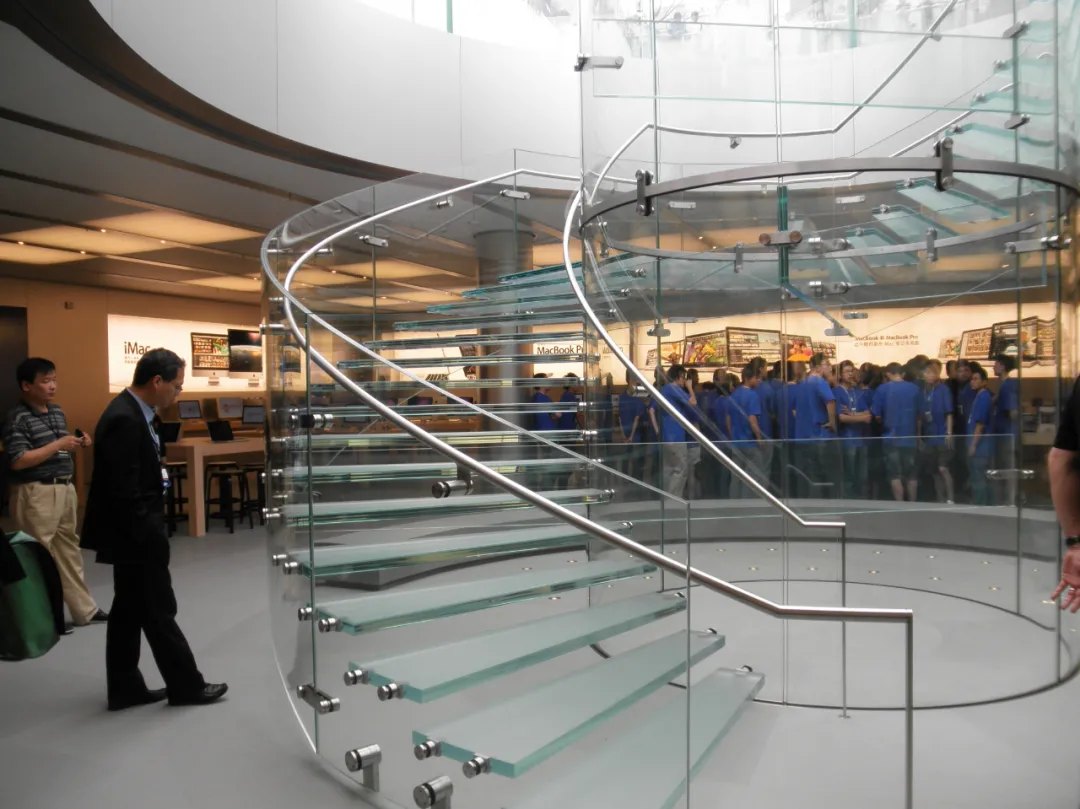

Apple Shanghai Pudong Store of Shanghai pudong

Thermal mirror insulating glass

NorthGlass thermal mirror insulating glass is an energy-saving, environmentally friendly and green product produced by using key technologies and key materials. After more than 20 years of development and improvement, this technology has formed a complete set of mature process and brand awareness, and has been widely used in the residential and public glass industry in Europe and the United States.

Maximum size: 2000mm×18000mm

Minimum size: 200mm×300mm

Winter Garden

Semi-tempered glass

Semi-tempered glass production uses a similar process method to tempered glass, but the cooling rate is slower, so its surface stress is slightly less than that of tempered glass. NorthGlass semi-tempered glass has excellent performance in terms of mechanical strength, wind pressure resistance, impact resistance and thermal shock resistance.

Maximum size: 3600mm× 18000mm, 3300mm×24000mm

Minimum size: 200mm×300mm

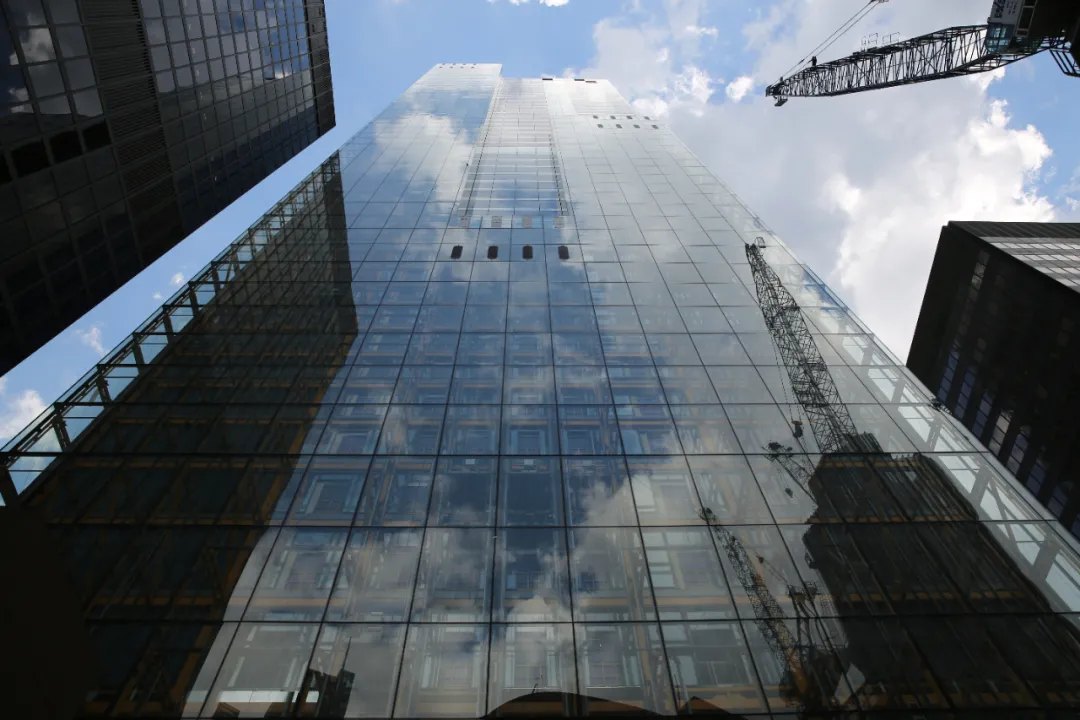

London Lyden Office, London, UK

Low-E glass

The self-developed low-emissivity coating technology and coating system can be customized according to customer requirements, and the low-emissivity coated glass has more excellent thermal conductivity and shading coefficient.

Maximum size: 3300mm×18000mm

Minimum size: 400mm×600mm

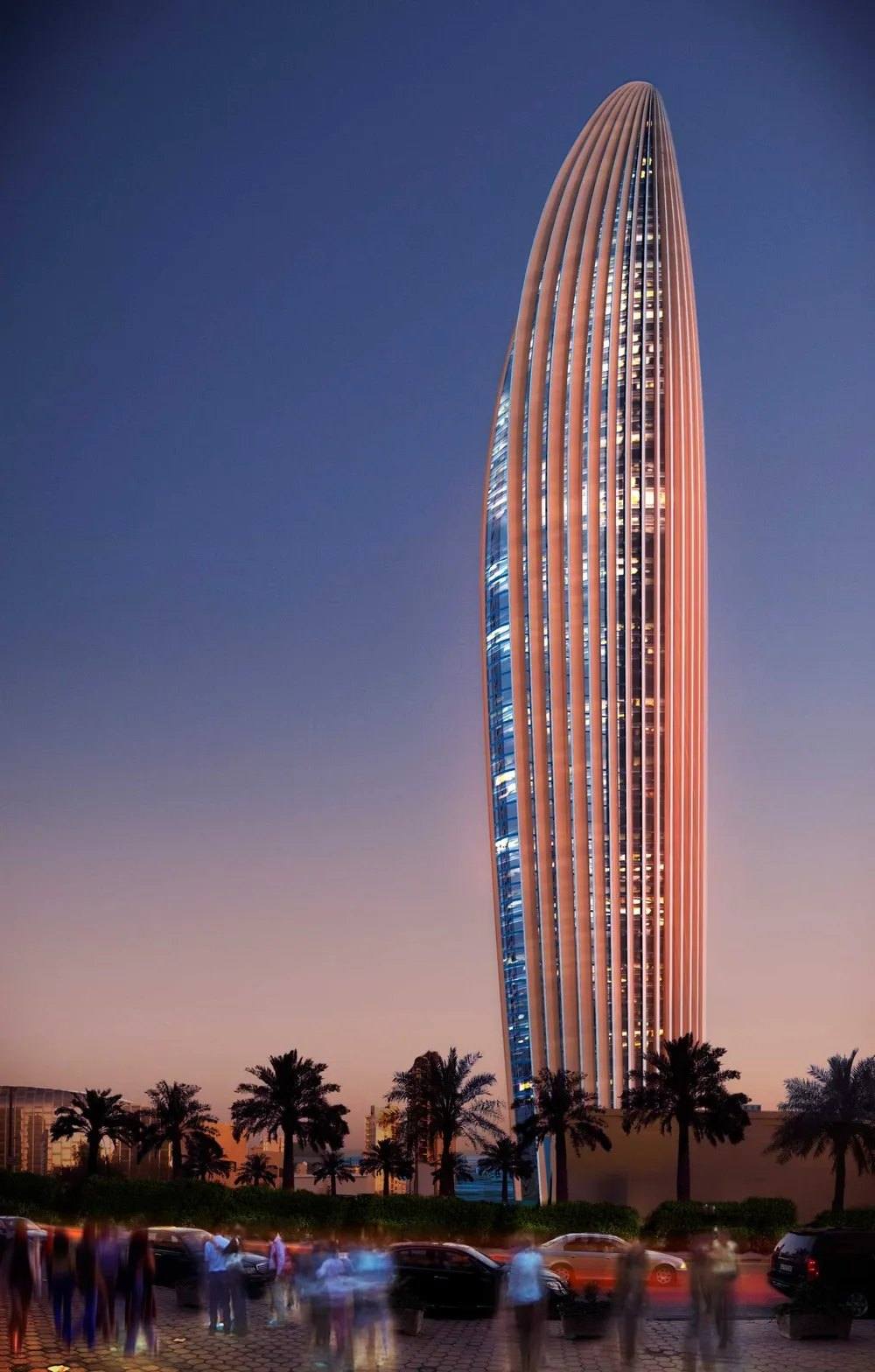

National Bank of Kuwait
