2025 Curtain Wall Design Competition [Project Exhibition] China Construction Eighth Bureau Second Company - Sun Culture Center

Highlight 1: Integrate into nature and spy on the law

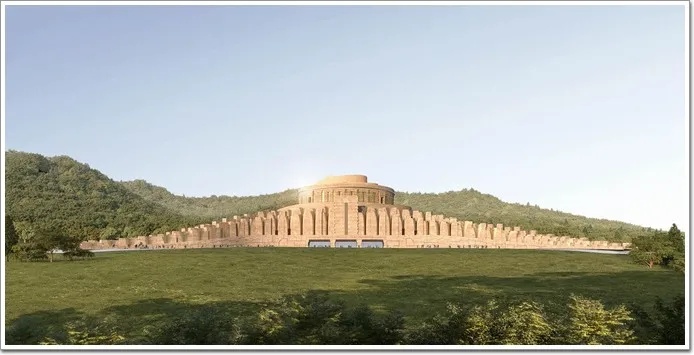

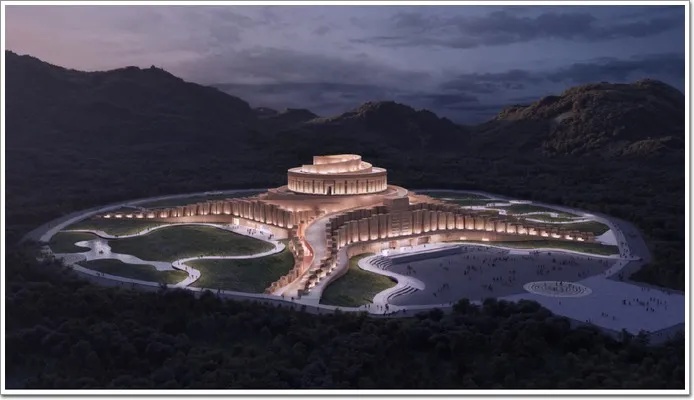

In terms of spatial layout, the project uses the Tai Chi Yin-Yang diagram as the architectural center, symbolizing the changes in the yin-yang rhythm of the solar return year, as well as the yin and yang sides of the alternation of light and dark formed by the earth's revolution and rotation.

From the core of the building to the surrounding area, the landscape in eight directions corresponds to eight different phenomena in the universe, thus constructing a unique spatial layout system and highlighting the unique cultural connotation and design ingenuity.

Highlight 2: Integrate into nature and spy on the law

In terms of modeling design, the main shape above the main entrance of the project is based on the jade ceremonial vessel element as the design source, highlighting the solemnity of the entrance; The main entrance door opening supports the main stone with "He Zun" as the element, the corner end of the shape protrudes from the surface of the vessel, and there are four door edges on the side of the body, which is thick in shape and highlights the sense of ceremony; At the door opening of the corridor, the cultural elements of jade cong and jade contained in the main stone are continued, and the design elements of ancient Shandong buildings and their context are cleverly integrated, and a unique architectural style is created through the reconception and presentation of cultural elements and architectural elements.

Highlight 3: Super large grid GRC system

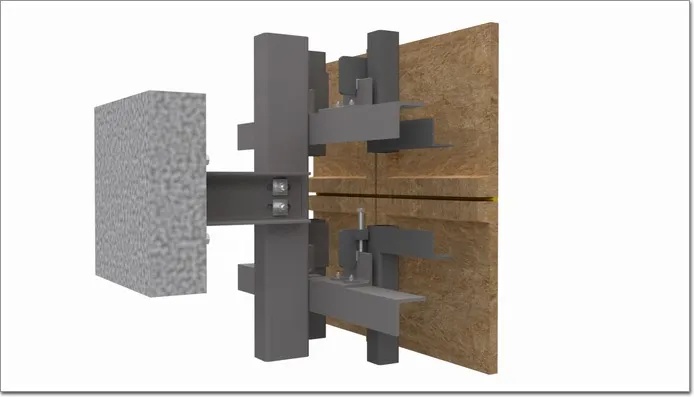

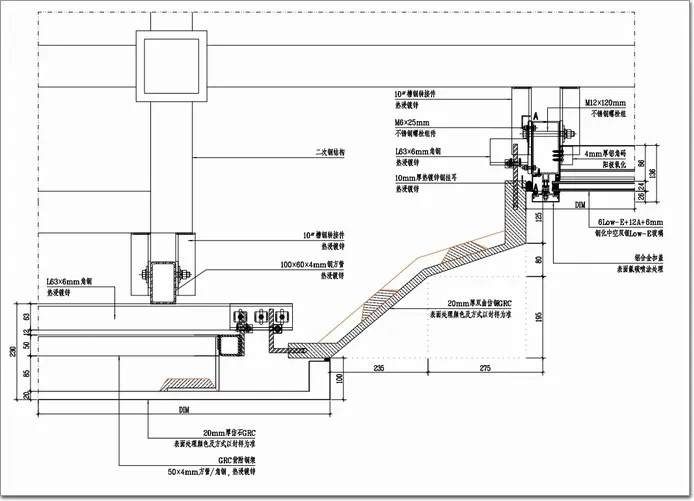

The GRC panel is connected to the steel frame by the bolt to form a whole, the hanging lug is set on the back of the steel frame, and the height direction is adjusted through the adjustment bolt on the top hanging lug, and the angle bar is set with a long round hole and the beam is fixed by bolts to achieve the adjustment of the entry and exit direction, and the plate is limited by self-tapping nails after completing the left and right adjustment on the 100mm angle steel, and finally the GRC panel is connected to the short angle steel as a whole to realize the overall hooking of the system.
